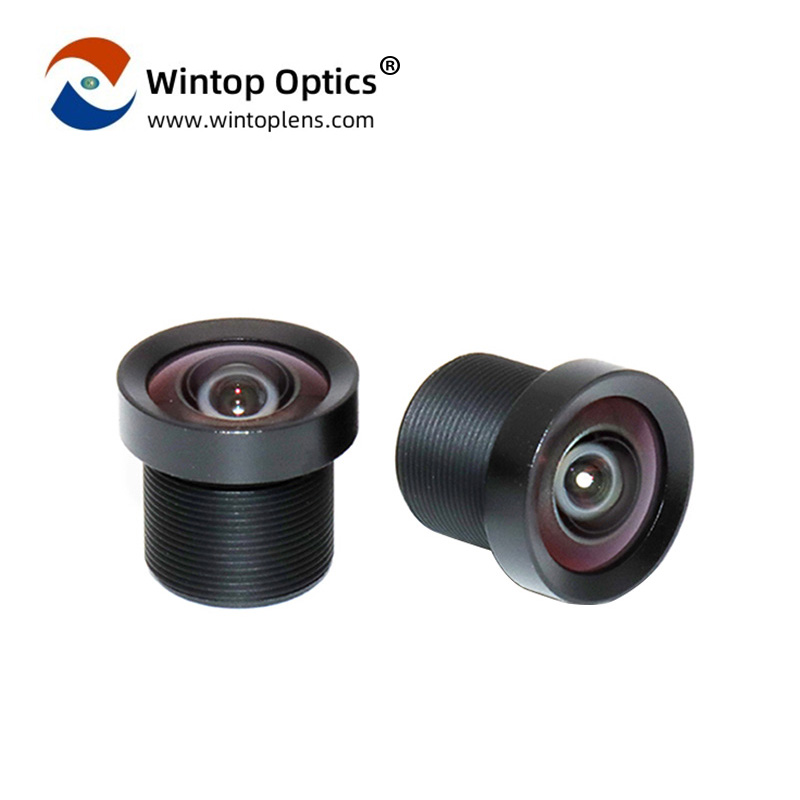

IP67 4MP IMX225 1/2.9" Automotive Camera Lens for Driving Safety YT-7712-C1

  • IMX225 Automotive Camera Lens F2.0 Car Camera Dual Lens
  • M12 4MP sport dv camera lens for dashcam 1/2.7'' 1/2.8" 1/2.9" sensors
  • law enforcement cameras lens for car recorder camera event data recorder lens
  • Automotive Camera Lens Panoramic Lens Car Recorder Front And Back Double Lens
  • oggetto numero :

    YT-7712-C1
  • Sensore :

    IMX225
  • F/NO. :

    2.0
  • EFL :

    1.95mm
  • TTL ottico :

    17.07
  • Dimensione filettatura :

    M12*P0.5
  • FOV(O/V/D) :

    115°/93°/132°
  • Struttura :

    4G2P+IR



YT-7712-C1 : The Wintop Optics Automotive Camera Lens for Experience Driving Safety



know more about YT-7712-C1 Car Camera Lens parameters
Img Circle(mm)
∅7.0
Focal Length(EFL) 1.95mm
F/NO.(Infinite) 2.0
Optical TTL 17.07
Mechanical TTL 17.07
Back Focal Length 3.26
Flange Back Length 2.77
TV Distortion -10%
Relative Illumination ≥60%
Storage Temperature -30℃~+80℃
CRA 11.5°
Recent Camera Distance
0.2
Infrared
/
Wave Length

420~600nm  T≥90%

Dust Level

IP67



YT-7712-C1: The Beacon of Nighttime Visibility for Vehicles

Elevate your vehicle's safety with the YT-7712-C1, a premium automotive surveillance lens that sets the gold standard for night vision and clarity. This lens is meticulously crafted to exceed the stringent requirements of the automotive industry, boasting IATF16949 international certification and a robust F2.0 aperture that ushers in an abundance of light, ensuring your nighttime drives are as safe as they are during the day.



Flawless Night Vision with F2.0 Aperture

The YT-7712-C1's F2.0 aperture is designed to perform exceptionally well in low-light conditions, providing superior night vision that illuminates the road ahead with confidence. This feature is paramount for drivers who value safety above all else, making it easier to navigate through the darkness with minimal strain on the eyes.



Compact Design with 1.95mm Focal Length

This lens features a compact 1.95mm optical focal length and a total optical length of 17.07mm, making it an ideal choice for vehicle installations where space is at a premium. Despite its compact size, it delivers a powerful performance that meets the demands of high-resolution imaging.



High-Definition Imaging with IMX225 Chip Compatibility

Pairing perfectly with the IMX225 chip, the YT-7712-C1 offers four million high-definition pixels, capturing detailed images with outstanding clarity. The lens's 7mm image height ensures that every detail is captured with precision, providing a reliable visual for drivers and security systems alike.



Expanded Field of View for Comprehensive Coverage

The lens's expansive field of view, with a 132° diagonal and 115° horizontal angle, significantly reduces blind spots and provides a wider coverage area. This broad perspective is crucial for monitoring the vehicle's surroundings, ensuring that drivers have a complete understanding of their environment.



Standard M12*P0.5 Thread for Easy Integration

Equipped with a standard M12*P0.5 thread, the YT-7712-C1 ensures easy and secure integration with a wide range of vehicle camera systems. This universal thread design simplifies the installation process and guarantees a stable and reliable connection.



IP67 Rating for All-Weather Durability

Built to withstand the elements, the YT-7712-C1 carries an IP67 rating, making it dust-tight and waterproof. This durable lens maintains its performance in all weather conditions, ensuring that your vehicle's surveillance system remains operational and effective.



Hybrid Glass-Plastic Construction for Value and Performance

The lens is constructed with a hybrid glass-plastic 4G2P structure, which not only delivers high optical performance but also offers exceptional value. With a relative illumination of over 60%, this lens guarantees clear and bright images while providing a cost-effective solution for automotive surveillance needs.



In conclusion, the YT-7712-C1 is a testament to the future of automotive surveillance technology. Its combination of high-definition imaging, expansive field of view, and robust construction makes it an indispensable asset for any vehicle, providing drivers with the visibility and assurance they need to drive safely in any condition.
